Batteries
Introduction
Our drone battery packs use 21700 cells which have high capacity (4000mAh or 5000mAh) and low internal resistance.
So that the battery packs can be discharged for a significant time at a very high current.
From our tests, an 1kg quadcopter with our 4S1P battery pack can stay in the sky for about 30 minutes.
Also, a 2.5kg fixed-wing plane with our 6S2P battery pack can fly for 2 hours at most!!!
In addition to high performance, our batteries are also very affordable!
Please contact us at aeroeggtech@gmail.com for a price!
Parameters
| Pack | Capacity (mAh) | Max current (A) | Voltage (V) | Size (mm) | Weight (g) |
|---|---|---|---|---|---|
| 2S1P | 4000 | 40 | 7.4 | 72x43x22 | 150 |

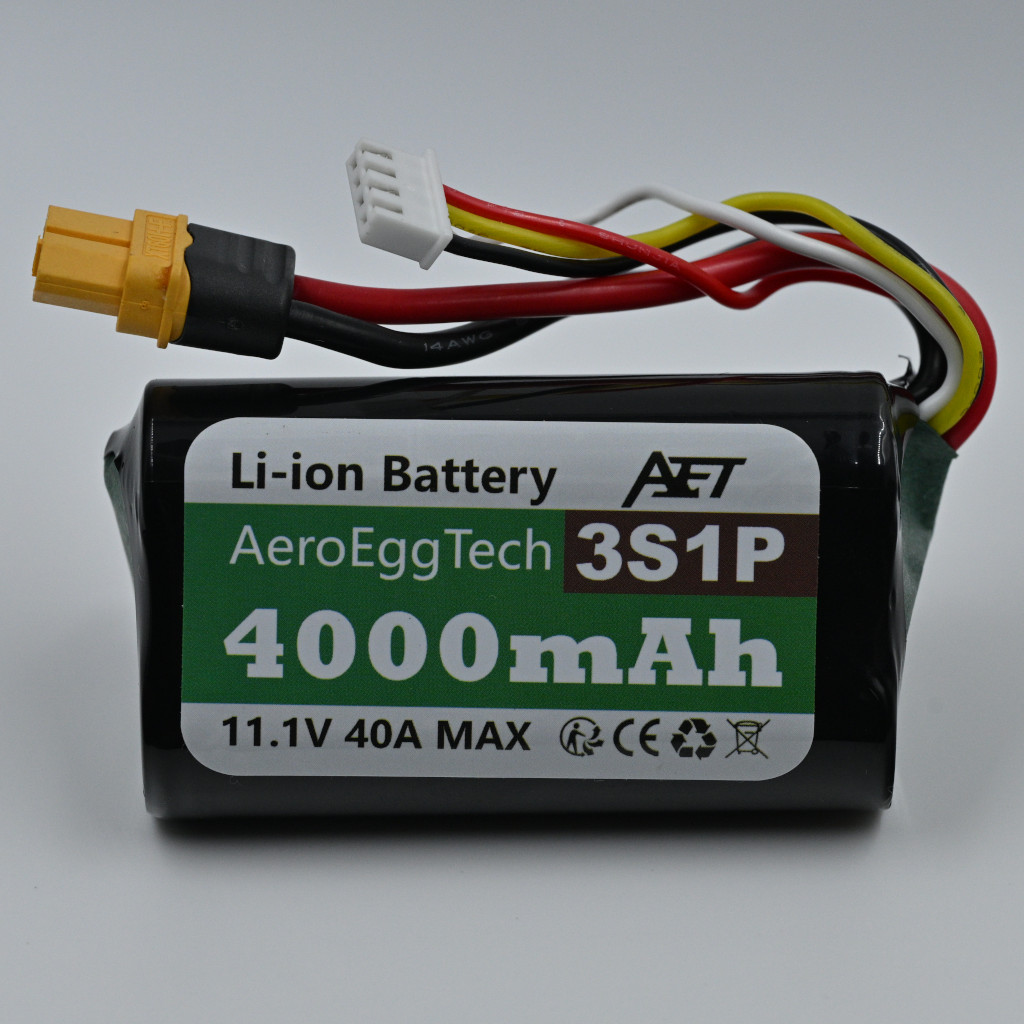

| 3S1P | 4000 | 40 | 11.1 | 72x43x40 | 220 |

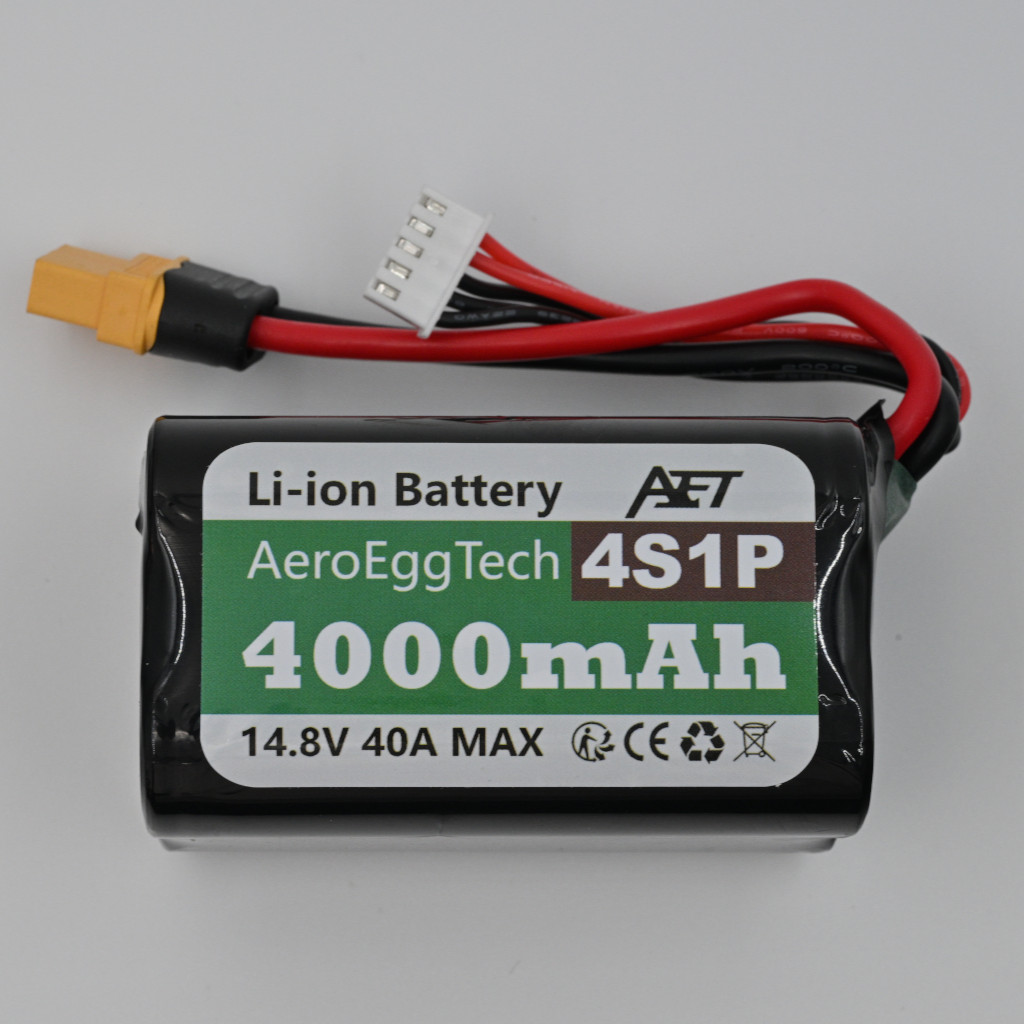

| 4S1P | 4000 | 40 | 14.8 | 72x43x43 | 290 |

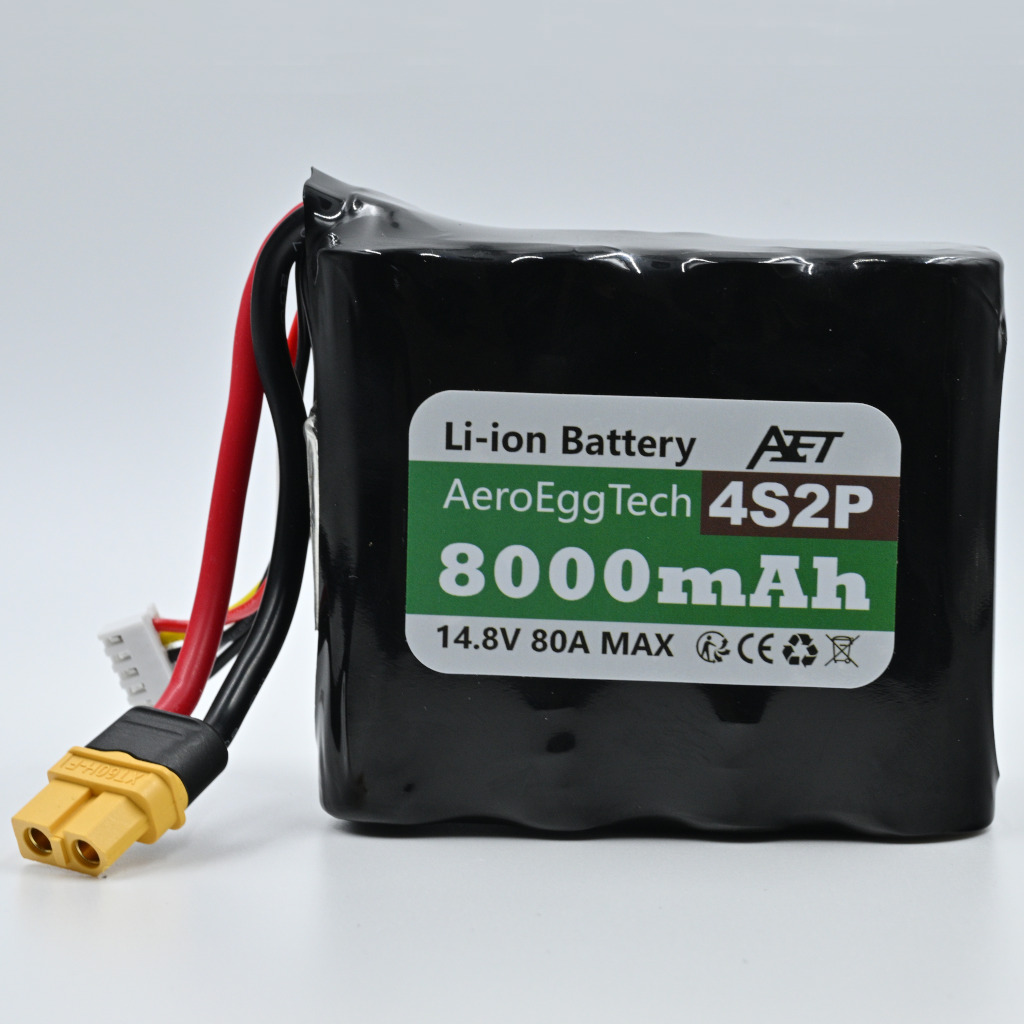

| 4S2P | 8000 | 80 | 14.8 | 142x43x43 | 570 |

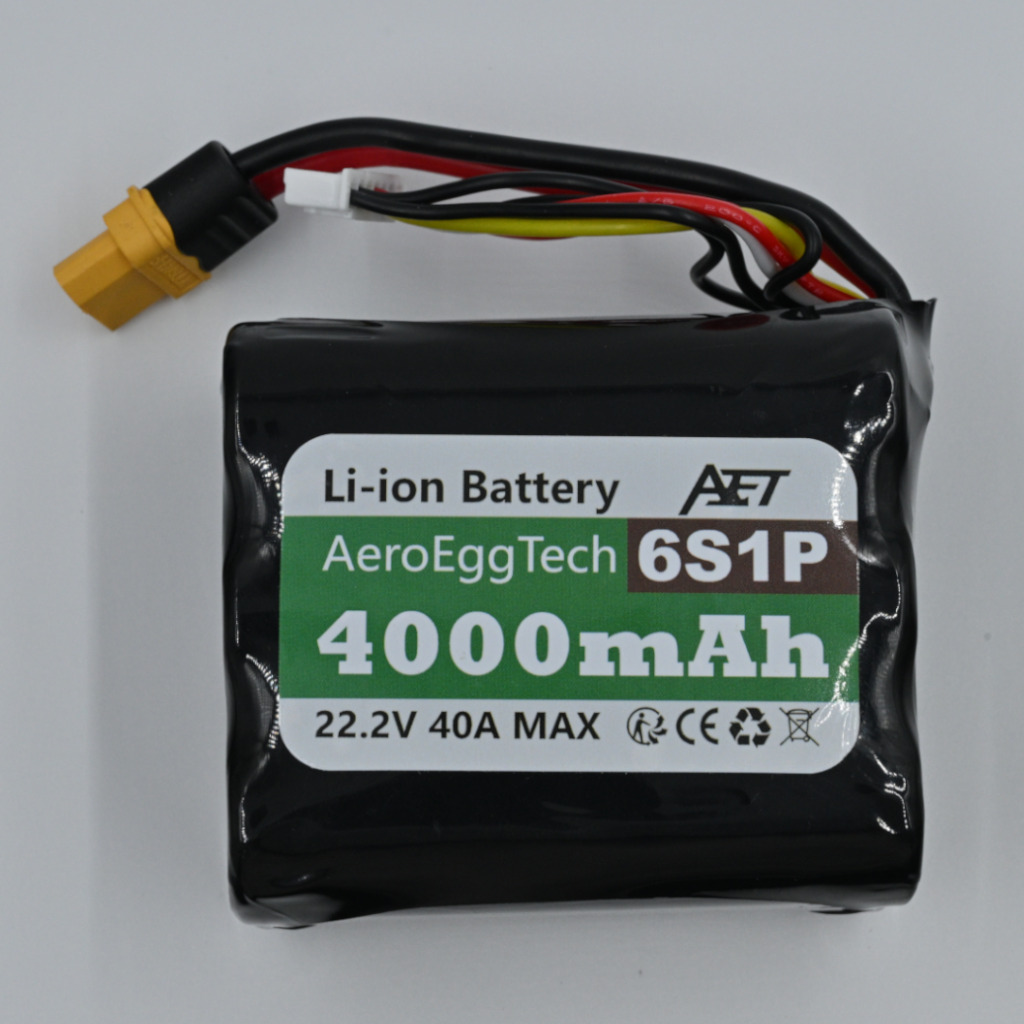

| 6S1P | 4000 | 40 | 22.2 | 65x43x72 | 430 |

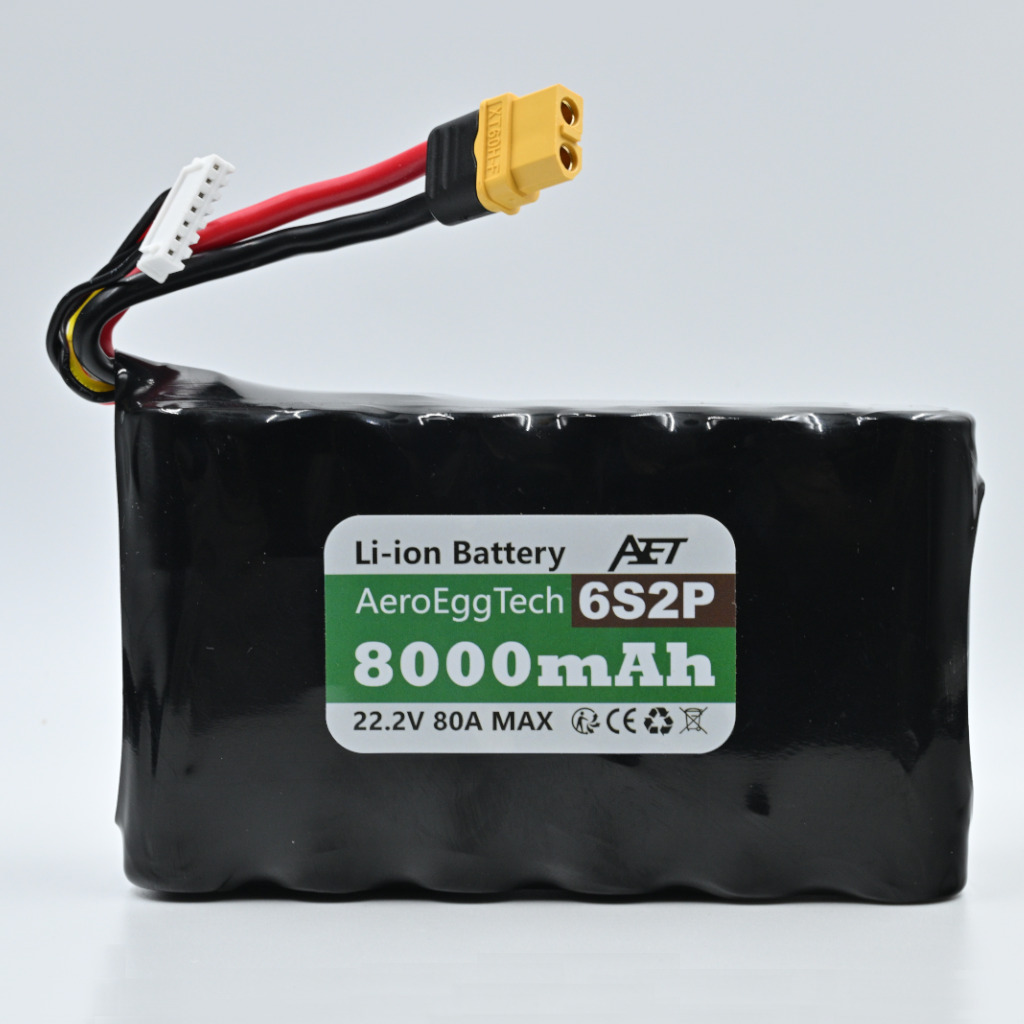

| 6S2P | 8000 | 80 | 22.2 | 130x43x72 | 850 |
| 2S1P | 5000 | 30 | 7.4 | 72x43x22 | 150 |
| 3S1P | 5000 | 30 | 11.1 | 72x43x40 | 220 |

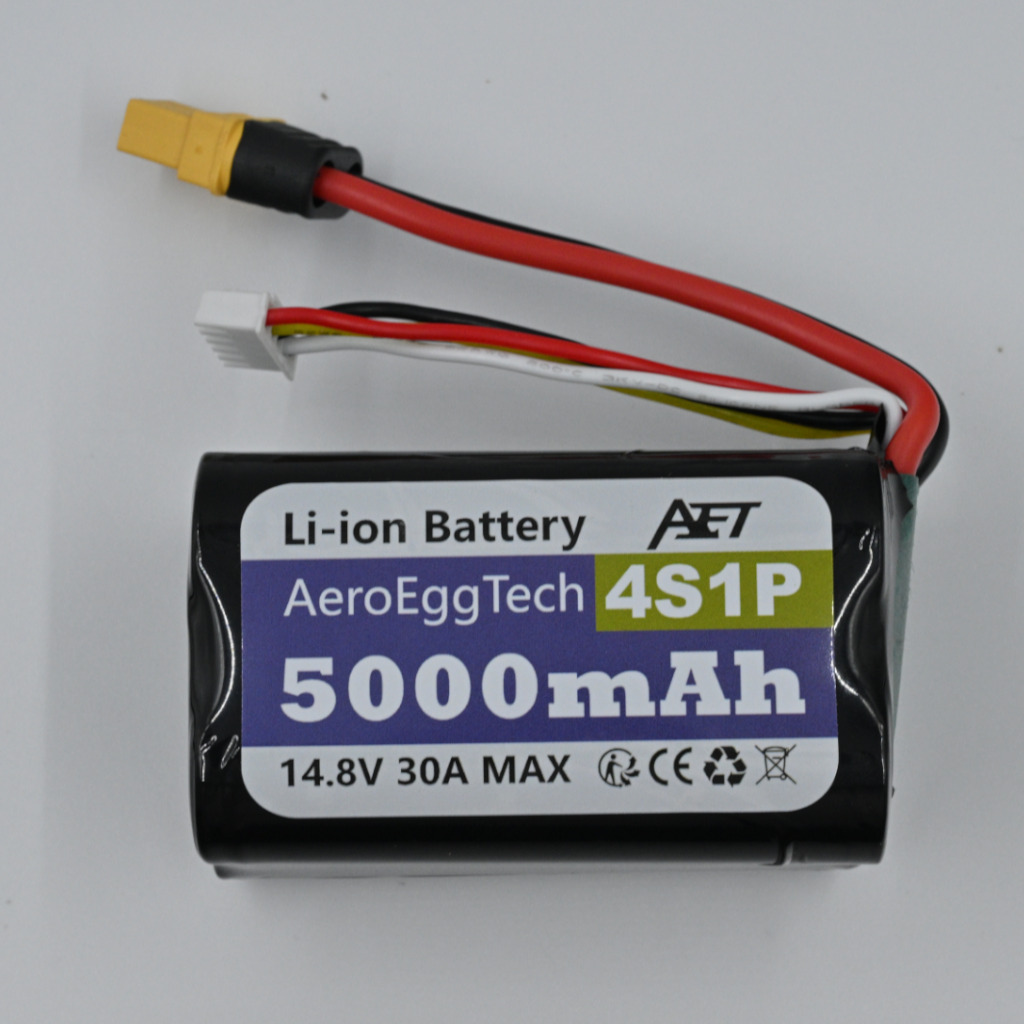

| 4S1P | 5000 | 30 | 14.8 | 72x43x43 | 290 |

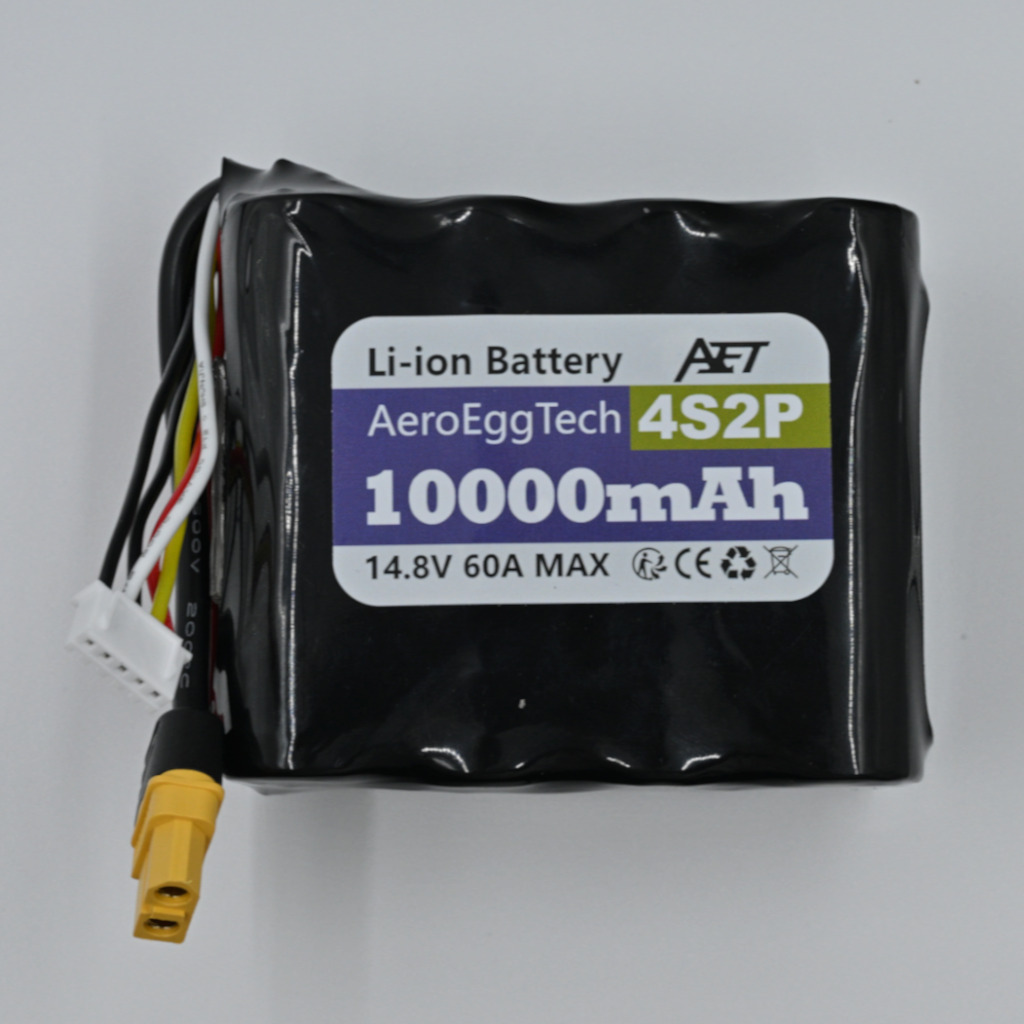

| 4S2P | 10000 | 60 | 14.8 | 142x43x43 | 570 |

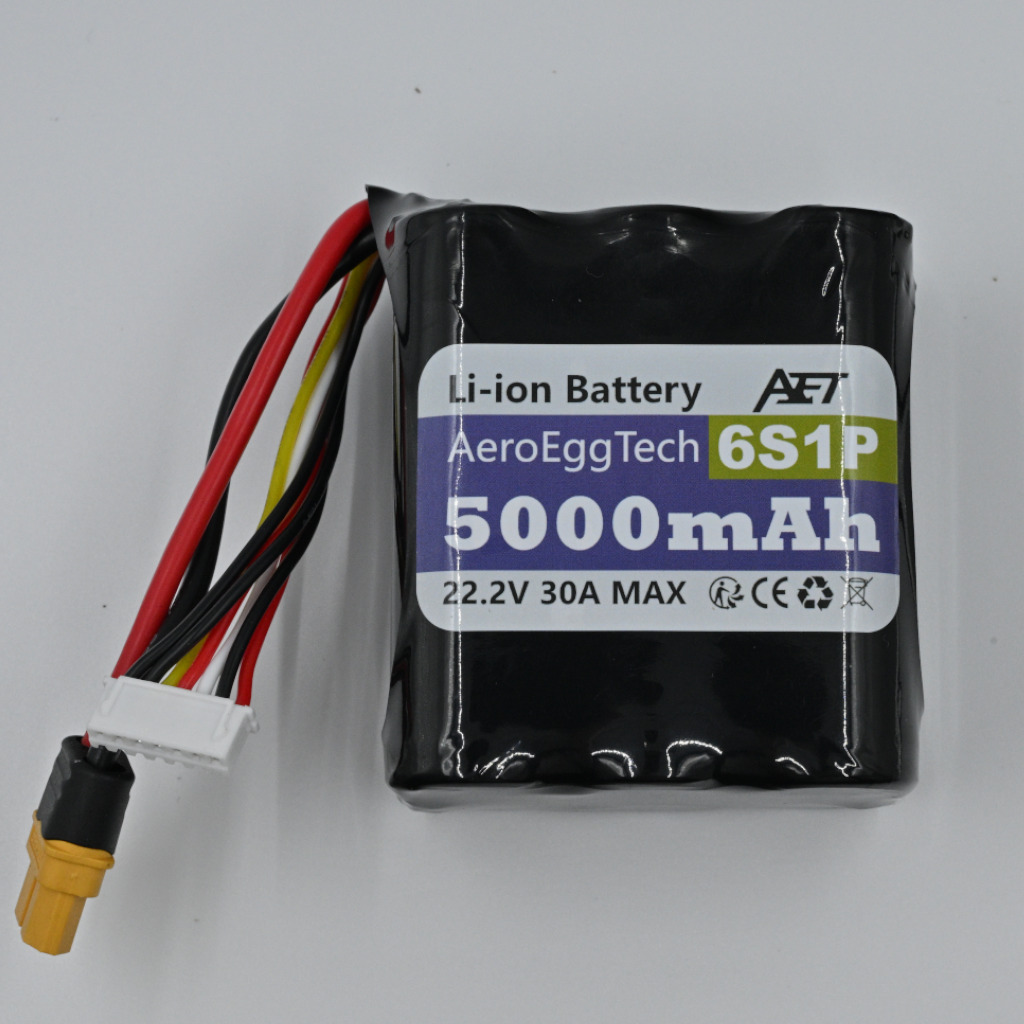

| 6S1P | 5000 | 30 | 22.2 | 65x43x72 | 430 |

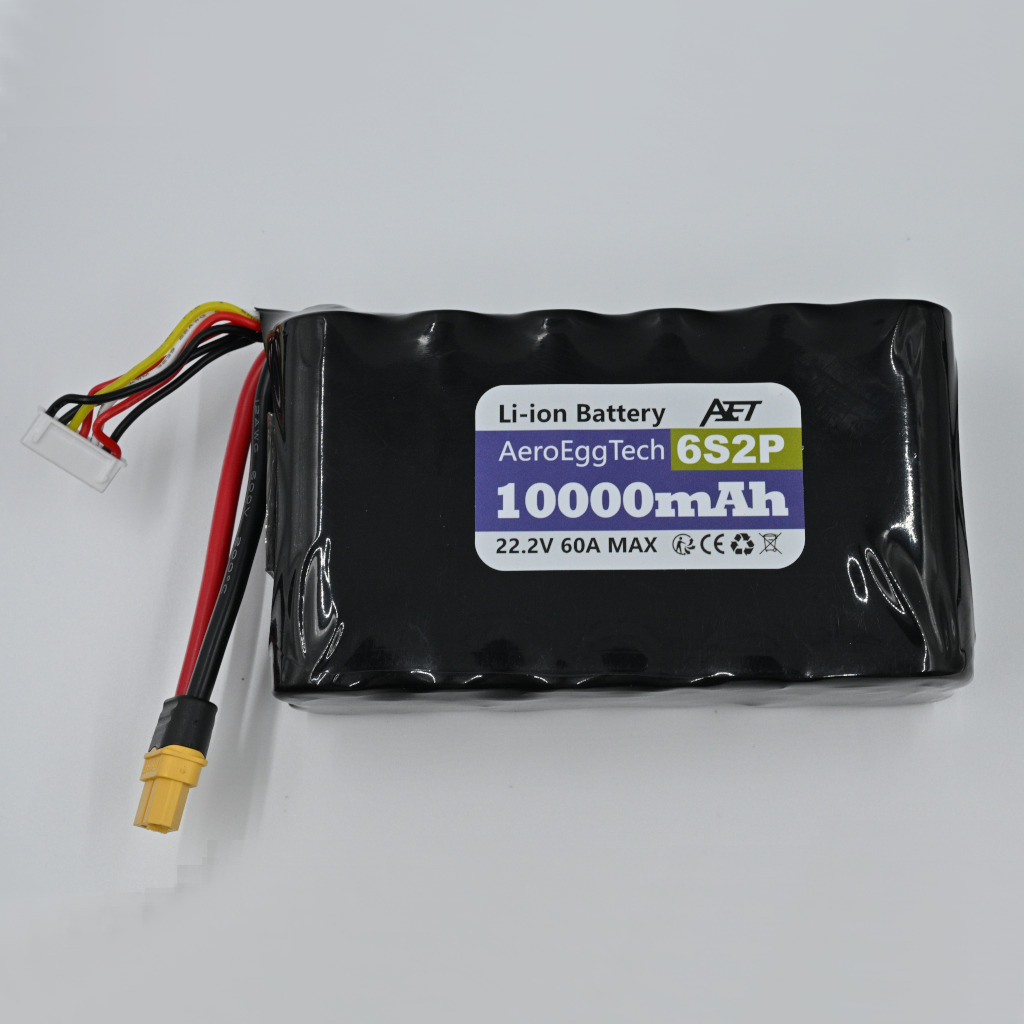

| 6S2P | 10000 | 60 | 22.2 | 130x43x72 | 850 |
Pictures
